AlN hot plate
Our aluminum nitride hot plate is a heat element that can be printed and sintered in a pattern on sintered ceramics.
The heating pattern material can support a broad range of temperatures.
Power supply terminals and heating patterns have about the same thermal resistance and do not need special measures to protect the terminals.
Basic Structure
Insulation Layer
| Layer thickness | 10～20μm |
|---|---|
| Dielectric voltage | ≧1000V/25μm |
| Max. working temperature | ～ approx. 450℃ |
Heating element
| Printed layer thickness | 10～20μm |
|---|---|
| Volume resistivity value | 35～475μΩcm |
| Max. working temperature | ～ approx. 600℃ |
Substrate
| Material | AlN (Aluminum Nitride) |
|---|---|
| Thermal conductivity | 170W/m・K (RT) ～ |
| Thermal expansion coefficient | 4.5×10-6/℃ |
| Maximum manufactuable size | φ450mm |
Features
- Energy saving
- Heating element electric resistance can be adjusted arbitrarily enabling design of heater output to match the application for low temperature to high temperature.

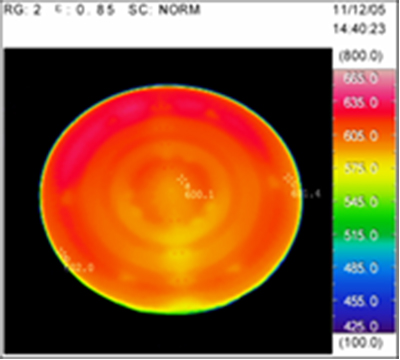

- Consistent thermal distribution
- Ceramic material characteristics and wide range temperature applicability.
- Design supporting your needs
- Proposals for appropriate design specifications matching customer requirements are possible
- Supports a broad range of elements
- Maximum use temperature is 450℃. Please contact us to investigate higher temperature levels.
