Low volume-scattering ceramics for optical measurement / inspection applications

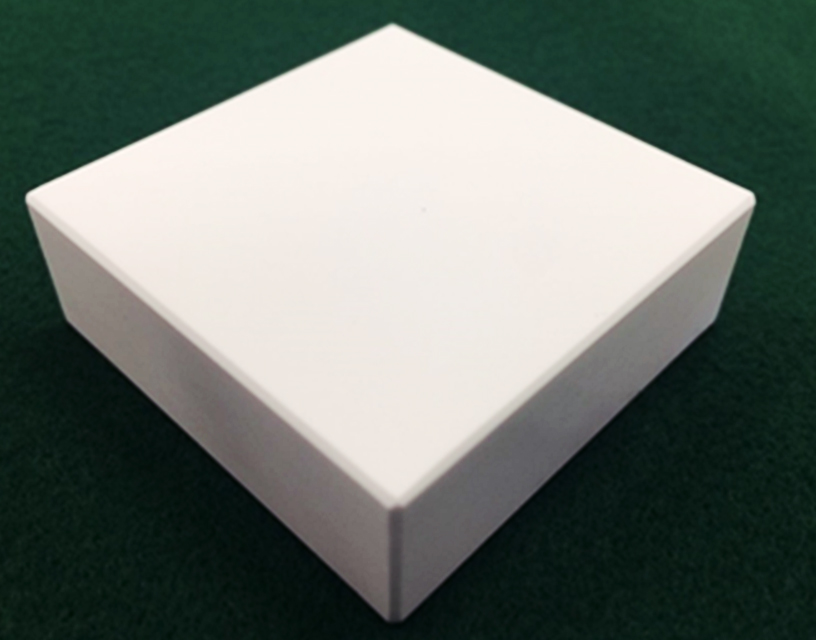

Low Volume-scattering Technical Ceramics
LovTEC
Features
- ・Low volume scattering inside the ceramics resulting in low optical penetration
- ・Most incoming light is reflected diffusely, even as a mirror there is low regular reflection

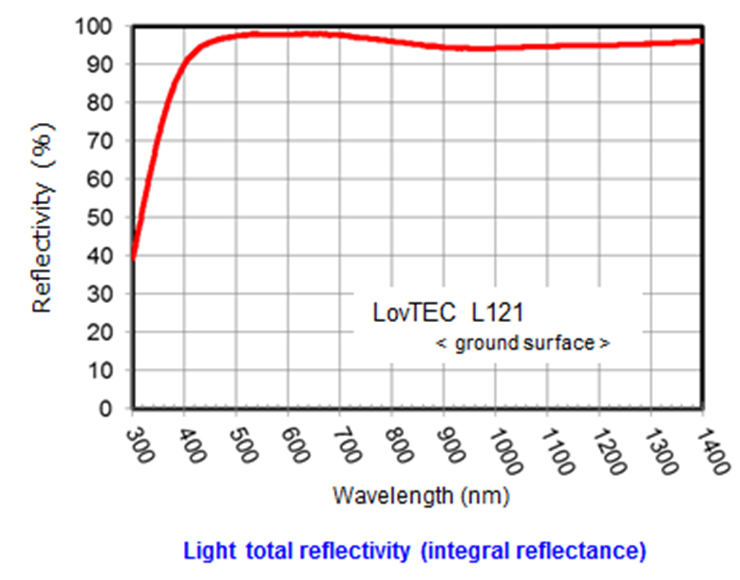

- ・High total reflectivity: Pure white, 90% or more of visible spectrum
- ・Low thermal expansion: 0.6 x 10-6/K at room temperature (super invar alloy equivalent)
- ・Supports ultra-precise machining (sub-micron order flatness/sphericity)
- ・No rust
- ・Light weight (Bulk density 3.0 g/cm3)
LovTEC Characteristics
Code | L121 | |
---|---|---|
Color | White | |
Bulk Density | g/cm3 | 3.0 |
Young's Modulus | GPa | 160 |
Poisson's Ratio | 0.31 | |
3pt Bending Strength | MPa | 230 |
Hardness HV | GPa | 8.9 |
Thermal Expansion Coefficient | ×10-6 K (23˚C) | 0.6 |
Feature | Low volume scattering |
* The values are measured results, not guaranteed values.
Example Products
Calibration standard for Non-contact measurement device
Standard sphere / Flat Reference Plane / Standard Scale
-
φ25 Standard Sphere (Matte)
-

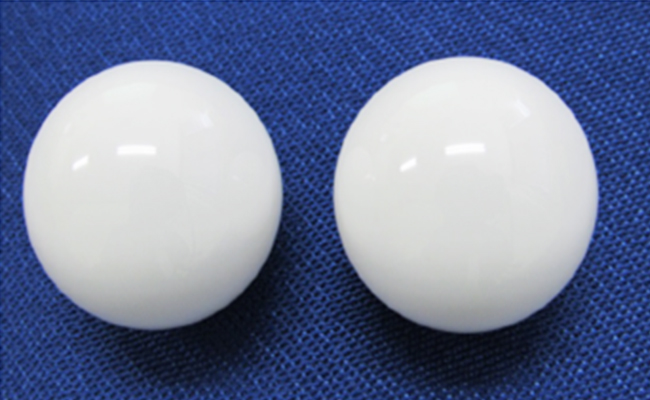

φ25 Standard Sphere (Glossy)
Item | Matte | Glossy |
---|---|---|
Color | White | White |
Diameter (mm) | φ25+/-0.2 | φ25+/-0.2 |
Roundness (μm) | < 1 | < 0.5 |
Surface roughness | Ra 0.4~0.6 | Ra 0.1~0.2 |
Installation | Hole machining, Screw busing contact enabled |
- ※Comes in standard 25mm diameter spheres. Other sphere shapes are available.
- ※Please consult with us about flat reference planes and standard scale shapes.
